12F ASU G652D/G657A Fiber Cable 12F ASU Fiber Cable

Name: 12F ASU G652DG657A Fiber Cable 12F ASU Fiber Cable
Brand: PUNAISGD
Price: 1 USD

China 12F ASU G652D/G657A Fiber Cable 12F ASU Fiber Cable wholesale

Brand Name : PUNAISGD

Model Number : ASU-8B1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Type : ASU-8B1.3

Application : Telecom Comunication

Strength member : frp *2pcs*0.7mm

Jacket color : Black Color/Others

Number of conductors : 4-12

Span : 80 120

Warranty Period : 25 years

Hs Code : 854470000

Sample : yes

Istallation : Aerial

Strengthening Structure : FRP Strength Member

Central Strength Member : FRP

Custom : Customized available

Name : ADSS Fiber Optic Cable

Contact Now

Bundle Tube Type All Dielectric ASU Self-Supporting Optical Cable

The structure of the optical cable is designed to connect 250 μm optical fibers. The fibers are inserted into a loose tube made of high modulus material, which is then filled with waterproof compound. The loose tube and FRP are twisted together using SZ. Water blocking yarn is added to the cable core to prevent water seepage, and then a polyethylene (PE) sheath is extruded to form the cable. A stripping rope can be used to tear open the optical cable sheath.

12F ASU G652D/G657A Fiber Cable 12F ASU Fiber Cable

Product Features

The unique second-layer coating and stranding technology provide sufficient space and bending resistance for optical fibers, ensuring that the fibers in the electrical and cable have good optical performance.
Resistant to high and low temperature cycles, resulting in anti-aging and a longer lifespan.

Accurate process control ensures good mechanical and temperature performance.
High-quality raw materials ensure a long service life for cables.

Optical Characteristics

Fiber Type	Attenuation		1310nm MFD(Mode Field Diameter)	Cable Cut-off Wavelength λcc(nm)
Fiber Type	@1310nm(dB/KM)	@1550nm(dB/KM)	1310nm MFD(Mode Field Diameter)	Cable Cut-off Wavelength λcc(nm)
G652D	≤0.36	≤0.22	9.2±0.4	≤1260
G657A1	≤0.36	≤0.22	9.2±0.4	≤1260
G657A2	≤0.36	≤0.22	9.2±0.4	≤1260
G655	≤0.4	≤0.23	(8.0-11)±0.7	≤1450
50/125	≤3.5 @850nm	≤1.5 @1300nm	/	/
62.5/125	≤3.5 @850nm	≤1.5 @1300nm	/	/

Technical Parameters

Fibre Count	Span (m)	Cable Diameter (mm) ±0.3	Cable Weight (kg/km) ±5.0	Tensile Strength (N)		Crush Resistance (N/100mm)		Bend Radius (mm)
Fibre Count	Span (m)	Cable Diameter (mm) ±0.3	Cable Weight (kg/km) ±5.0	Long Term	Short Term	Long Term	Short Term	Dynamic	Static
1-12	80	6.6	50	600	1500	1000	2000	20D	10D
1-12	120	7.6	62	800	2000	1000	2000	20D	10D
16-24	80	7.5	60	600	1500	1000	2000	20D	10D
16-24	120	8.2	65	800	2000	1000	2000	20D	10D

Application

Power Line, dielectric needed or small span communication line.

Laying Method

Self-supporting aerial.

Operating Temperature

Temperature Range
Transportation	Installation	Operation
-40℃~+70℃	-20℃~+60℃	-40℃~+70℃

Standard

YD/T 1155-2001

Packing And Mark

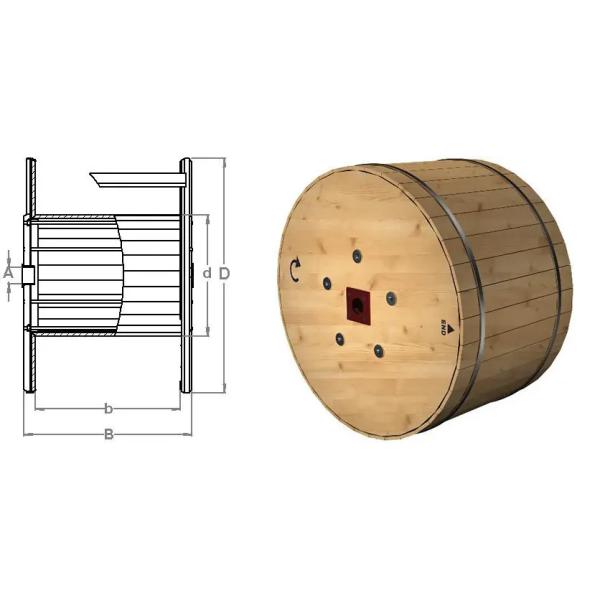

OYI cables are coiled on bakelite, wooden, or ironwood drums. During transportation, the right tools should be used to avoid damaging the package and to handle them with ease. Cables should be protected from moisture, kept away from high temperatures and fire sparks, protected from over-bending and crushing, and protected from mechanical stress and damage. It is not allowed to have two lengths of cable in one drum, and both ends should be sealed. The two ends should be packed inside the drum, and a reserve length of cable not less than 3 meters should be provided.
