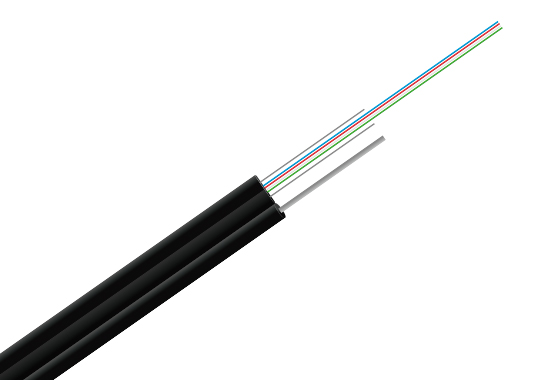

Fig-8 2 Core FTTH Drop Cable

  • 1
  • 2

Brand Name : PUNAISGD

Model Number : GJYXCH-2B6

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000km/month

Delivery Time : 7days

Packaging Details : woode drum

Keyword : Optical Fiber Drop Cable

Type : GJYXCH-2B6

Jacket Sheath : LSZH

Net Weight : 0.8kg/km, add 0.05kg/km

Steel : 0.45mm

Installation Style : Aerial

Fiber : G652D/G657A1

Steel Wires : 1mm, 0.45mm*2pcs

Installation Method : Indoor/Outdoor

Contact Now

Fig-8 2 Core FTTH Drop Cable

What is a drop wire used for?

The main function of a drop wire is to facilitate the final leg of the connection, bridging the gap between the main distribution network and the end user. There are several types of drop wires commonly used in the industry, each designed to meet specific requirements based on the environment and application.

Drop cables are the critical connection between a service provider's distribution network and the end user's home or business.

Product Description:
With metal strength member, flame-retardant LSZH jacket and special Low-bend-sensitivity fiber, suitable for direct aerial installation into the houses in FTTH projects.

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by two parallel strength members made of metal, steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Specification
FTTH DROP CABLE
MODEL: FDC-GJXCH-4B6a1
Fiber: SM G657A1
Fiber Count: 4
Parallel Wire: 0.45mm *2
Messenger Wire: 1.0mm
Jacket Material: LSZH

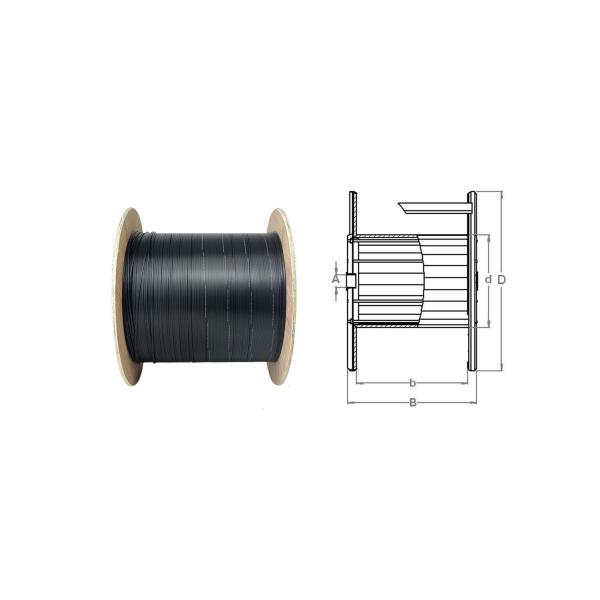

Cable Length: 1Km/Drum 2km/drum
Simple Specification:
Insertion Loss: ≤0.30dB Return Loss: ≥50dB
Durability: ≤0.2dB
Test Wavelength: 1310/1550nm
Operation temperature: -40℃~ 85℃
GJYXCH FTTH Fiber Optic Drop Cable 1 Core G657A1 Single Mode
Outdoor FTTH Drop Cable
With FRP & steel wire as strengthen member
LSZH outer sheath
G.657A1 optic fiber (or as request)
Fiber To The Home (ftth)
Product life of 15 years.
Storage/Operating Temperature: -40°C to + 70°C
Optical Cable Appplication
Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable
Laying method:
Working temperature: -40ºC~+60ºC
Bend radius: Static 12.5 times the cable diameter; Dynamic 25 times optical cable diameter
Fig-8 2 Core FTTH Drop CableFig-8 2 Core FTTH Drop Cable
Fig-8 2 Core FTTH Drop CableFig-8 2 Core FTTH Drop Cable
Bow-type Drop Outdoor/Indoor Cable for Access Network
Technical Parameters
Fiber Count
Cable Type
Cable
Cable Weight
(kg/km)
Tensiles Strength
Crush Resistance Long/short
Benging Radius
1
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
2
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
4
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
1
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D
2
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D
4
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D


Fig-8 2 Core FTTH Drop Cable
